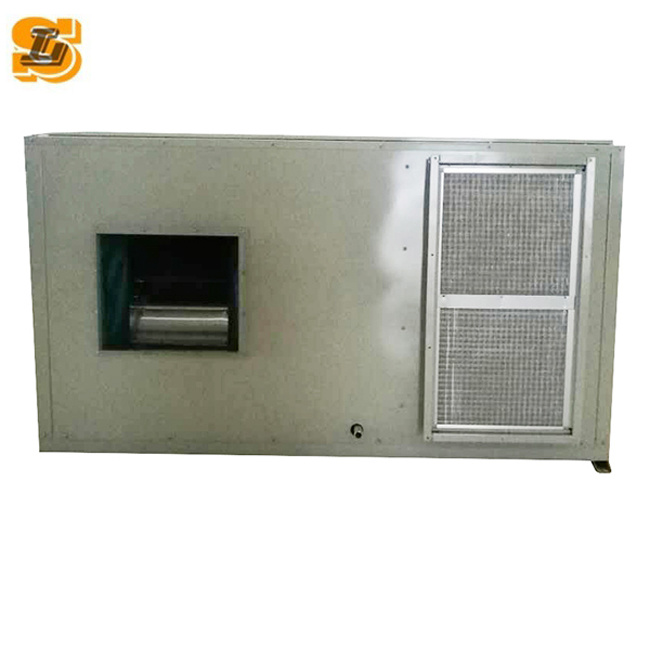

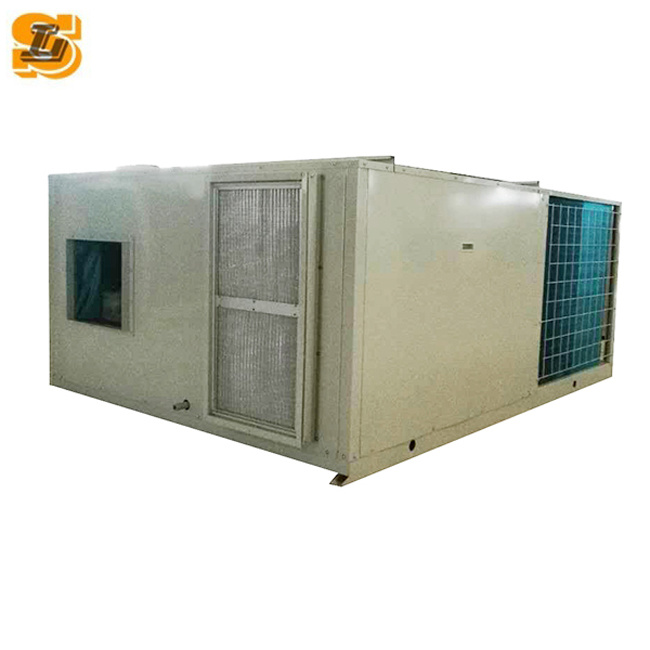

Industrial Rooftop air handling unit/rooftop mounted unit
Rooftop air conditioner
Features
Description:
1. Air cooled rooftop air conditioner.
2. Cooling capacity: 8kw to 90kw, a variety of choices.
3. High external pressure.
4. Applicable to residential and commercial buildings, hotels, and scientific research units, factories and enterprises and so on.
Feature:
1. Evaporator: Type Inner grooved copper tube and aluminum fin
2. Fin Type 5* :Slotted fin hydrophilic aluminum fin
3. Condenser: Type Inner grooved copper tube and aluminum fin
4. Fin Type 5* :Rippled hydrophilic aluminum fin
5. Condenser Fan Type: Low noise axial type
Technical Data
| SL-WKR Series-Roof Top AH Specifiaction 1 | ||||||||||
| Model GT-WKR- | 10 | 15 | 18 | 20 | 25 | 30 | 35 | |||
| Specification | Cooling capacity 1* | kW | 10.5 | 15.0 | 18.5 | 21.0 | 26.3 | 29.8 | 35.0 | |
| Heating capacity 2* | kW | 11.5 | 15.9 | 19.5 | 22.1 | 27.6 | 32.6 | 37.1 | ||
| Supply air 3* | m3/h | 1800 | 2400 | 2900 | 3500 | 4500 | 5000 | 5800 | ||
| Static pressure 3* | Pa | 100 | 150 | 150 | 180 | 200 | 250 | 250 | ||
| Noise 4* | dB(A) | 60 | 60 | 62 | 62 | 65 | 65 | 68 | ||
| Power | 3N-380V-60Hz | |||||||||
| Total capacity | 3.9 | 5.74 | 7.0 | 8.27 | 9.96 | 11.0 | 14.15 | |||
| Color | White | |||||||||
| ooling system | Compressor | Type | Efficient scroll closed | |||||||
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |||
| Supply air fan | Type | Low noise centrifugal type | ||||||||
| Capacity | kW | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | ||
| Evaporator | Type | Inner grooved copper tube and aluminum fin | ||||||||
| Fin type 5* | Slotted fin hydrophilic aluminum fin | |||||||||
| Condenser | Type | Inner grooved copper tube and aluminum fin | ||||||||
| Fin type 5* | Rippled hydrophilic aluminum fin | |||||||||
| Condenser fan | Type | Low noise axial type | ||||||||
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |||
| Refrigerant | Refrigerant | R22/R407C | ||||||||
| Refrigerant control | External balance type thermal expansion valve | |||||||||
| Air filter | Initially effect plate filter | |||||||||
| Dimensions | L | mm | 1400 | 1400 | 1600 | 1600 | 1850 | 1850 | 2200 | |
| W | mm | 1050 | 1050 | 1200 | 1200 | 1400 | 1400 | 1800 | ||
| H | mm | 1050 | 1050 | 1050 | 1050 | 1200 | 1200 | 1520 | ||
| Weight | kg | 200 | 230 | 260 | 300 | 550 | 600 | 850 | ||
- Cooling condition: Indoor dry bulb/wet bulb:29/19ºC,Outdoor dry bulb/wet bulb:46/24ºC
- Heating condition:Indoor dry bulb/wet bulb:20/-ºC;outdoor dry bulb/wet bulb:7/6ºC;
- The air volume and static pressure`s specification in the table is standard, and can be designable.
- Noise data is measured in the front of the units when cooling under the standard air volume.
- Fin type and material can be designable.
| SL-WKR Series-Roof Top AH Specifiaction 1 | ||||||||||
| Model GT-WKR- | 40 | 50 | 60 | 70 | 90 | 110 | 120 | |||
| Specification | Cooling capacity 1* | kW | 42.0 | 52.8 | 61.2 | 70.2 | 87.5 | 105.1 | 122.5 | |
| Heating capacity 2* | kW | 44.1 | 55.4 | 62.5 | 73.8 | 92.8 | 112.0 | 130.0 | ||
| Supply air 3* | m3/h | 7000 | 8600 | 10000 | 12000 | 14500 | 17000 | 20000 | ||
| Static pressure 3* | Pa | 300 | 300 | 300 | 350 | 350 | 400 | 400 | ||
| Noise 4* | dB(A) | 68 | 69 | 69 | 70 | 71 | 72 | 72 | ||
| Power | 3N-380V-60Hz | |||||||||
| Total capacity | 17.24 | 20.72 | 23.0 | 29.76 | 39.1 | 44.66 | 51.58 | |||
| Color | White | |||||||||
| ooling system | Compressor | Type | Efficient scroll closed | |||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | 4 | 4 | |||
| Supply air fan | Type | Low noise centrifugal type | ||||||||
| Capacity | kW | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 | 7.5 | ||
| Evaporator | Type | Inner grooved copper tube and aluminum fin | ||||||||
| Fin type 5* | Slotted fin hydrophilic aluminum fin | |||||||||
| Condenser | Type | Inner grooved copper tube and aluminum fin | ||||||||
| Fin type 5* | Rippled hydrophilic aluminum fin | |||||||||
| Condenser fan | Type | Low noise axial type | ||||||||
| Quantity | 2 | 2 | 2 | 4 | 4 | 4 | 4 | |||
| Refrigerant | Refrigerant | R22/R407C | ||||||||
| Refrigerant control | External balance type thermal expansion valve | |||||||||
| Air filter | Initially effect plate filter | |||||||||
| Dimensions | L | mm | 2200 | 2600 | 2600 | 3200 | 3200 | 6000 | 6000 | |
| W | mm | 1800 | 2200 | 2200 | 2200 | 2200 | 2300 | 2300 | ||
| H | mm | 1520 | 1700 | 1700 | 1900 | 1900 | 2300 | 2300 | ||
| Weight | kg | 850 | 1100 | 1250 | 1400 | 1650 | 1850 | 2200 | ||
Note:
1. Cooling condition: Indoor dry bulb/wet bulb:29/19ºC,Outdoor dry bulb/wet bulb:46/24ºC
2. Heating condition:Indoor dry bulb/wet bulb:20/-ºC;outdoor dry bulb/wet bulb:7/6ºC;
3. The air volume and static pressure`s specification in the table is standard, and can be designable.
4. Noise data is measured in the front of the units when cooling under the standard air volume.
Note: for further information please send me email.
