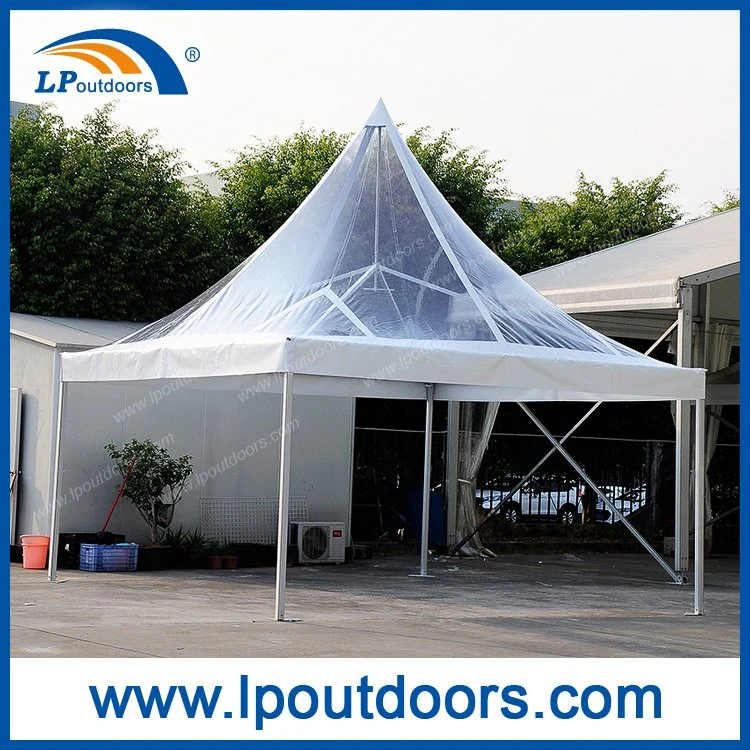

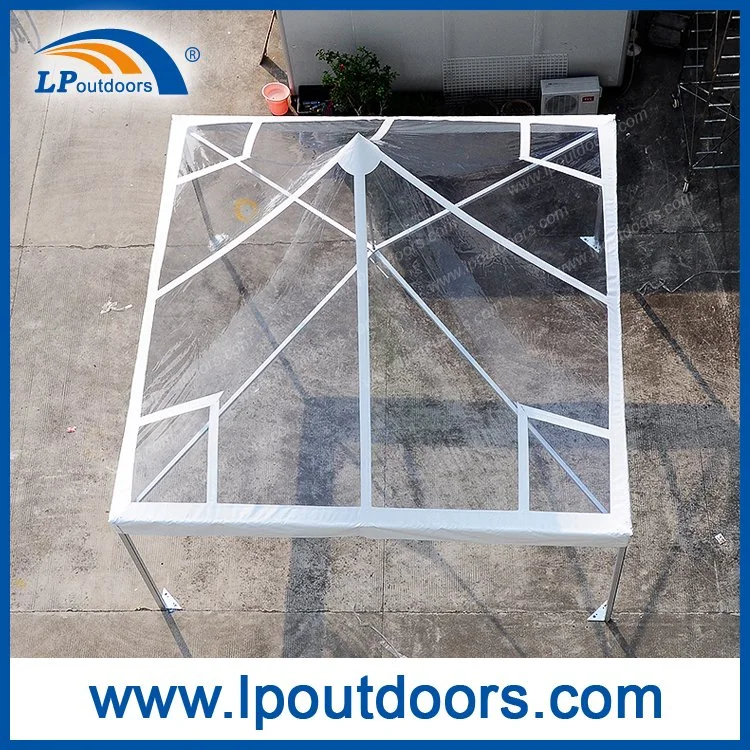

5m transparent PVC roof marqueen tent pagoda tent for trade show
(3)Cover material: 850G/M2 vinyl blockout, white with blue stripe for top cover, 650G/M2 for sidewalls vinyl blockout, waterproof, UV protection, rotproof Flame retardant M2.
(4)Options: Transparency PVC windows, grass anchors, wood floor, lining and so on.
Succeful Case:
1. 2010 World Cup Tent Official Supplier
2. 2010 Commonwealth Game Tent Official supplier
3. Sports tent for 2012 London Olympic game.
Guarantee: Frame 5years, fabric 3 years.
Wind loading: 100km/h.
Snow loading: 0.5kn/sqm
Certificate: Wind loading test, Vinyl Flame retardant M2, lining flame retardant BS5867
Galvanized Salt spray 144hours test, UV aging certificate, Aluminum 6061 test
Fabric RoHS certificate. Transparency PVC -20º C to 70º C resistant
Detailed specification:
(1)Size:
| Item | Width(m) | Length(m) | Side height(m) | Bay space(m) |
| PT 3x3m | 3 | 3 | 2.4 | 3 |
| PT 4x4m | 4 | 4 | 2.4 | 4 |
| PT 5x5m | 5 | 5 | 2.7 | 5 |
| PT 6x6m | 6 | 6 | 2.7 | 6 |
| PT 8x8m | 8 | 8 | 2.8 | 4 |
| PT 10x10m | 10 | 10 | 2.8 | 5 |
| PT 12x12m | 12 | 12 | 3.0 | 6 |
| PT 14x14m | 14 | 14 | 3.0 | 7 |
| PT 4x8m | 4 | 8 | 2.7 | 4 |
| PT 5x10m | 5 | 10 | 2.7 | 5 |
| PT 6x12m | 6 | 12 | 2.7 | 6 |
(2)Frame: Hard pressed extruded aluminum 6061/T6 anodized, hot DIP galvanized steel joints, and passed the 144hours of salt spraying test.
(3)Cover material: 850G/M2 vinyl blockout, white with blue stripe for top cover, 650G/M2 for sidewalls vinyl blockout, waterproof, UV protection, rotproof Flame retardant M2.
(4)Options: Transparency PVC windows, grass anchors, wood floor, lining and so on.
