| aluminium awning window, aluminium top hung window | |
| Profile | normal or thermal-break |
| Profile thickness | 1.2mm or 1.4mm |
| glass | double glass, 5mm+6A+5mm, 5mm+9A+5mm etc |
| Color Option | White, dark grey, grain etc. |
| Glass Option | Float glass, Low-e glass, tinted glass,frosted glass laminated glass and so on. |
| Hardware | China famous brand or German brand |
| Finish | 1. Powder coating 2.PVDF 3.Electrophoresis 4.Anodize |
| Sealant | PVC, EPDM |
| Flyscreen | Available |
| Measurement | Customized products according to clients |
| Performace | Corrosion-resistant, durable,non-deformable,energy-saving and ECO-friendly. |
Chainwinder:
1.A hardware used to open and close awning windows. It consists of a winding mechanism and a semi-rigid chain which is attached to the bottom rail of the sash.
As the winder is operated, the sash either extends or retracts depending on the winding direction.
2.Have three types color: white, silver and black color
Friction stay
1.Used for awning window.
2.The material is high quanlity stainless steel 304.
3.Meet the standard of China "Construction Door&Window Hardware Friction Stay " JG/T127-2007
Corner of the window:
1.90 degree for window frame, 45 degree for window panel.
2.Adopt joggle joint technology, Make the profile surface more planeness.

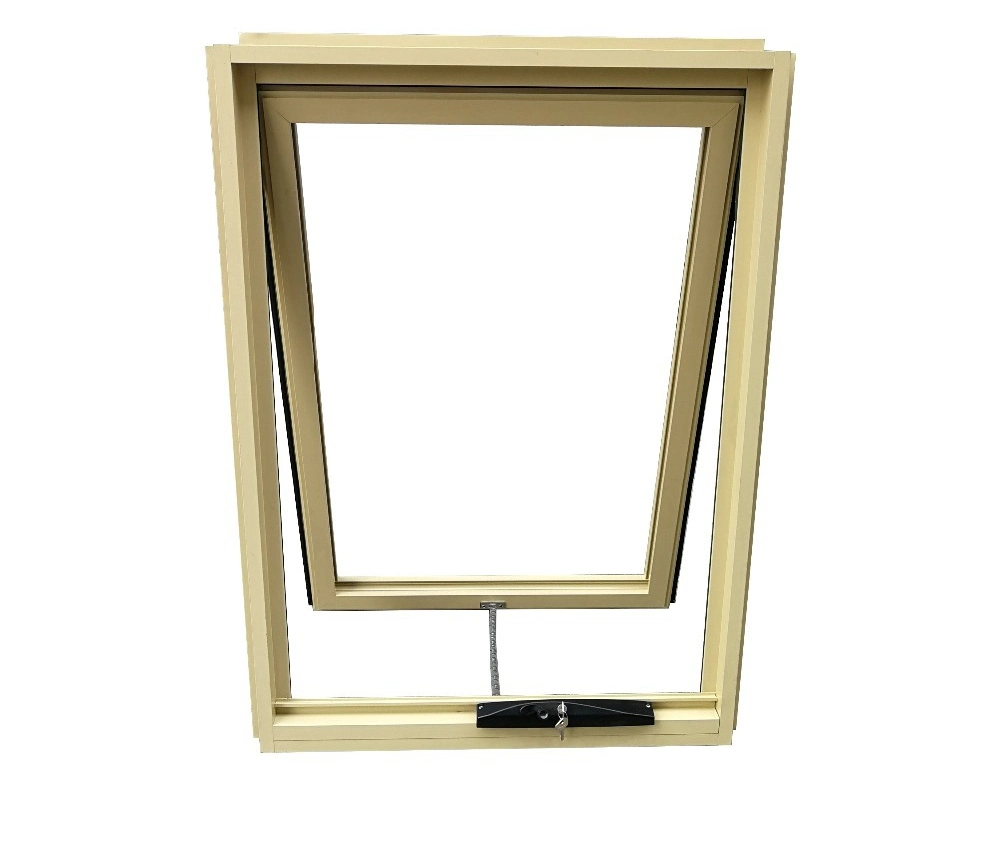

Aluminum awning windows will be perfect for bedrooms, living rooms and any other rooms in which you may want maximum ventilation and an open view.
The feature of such windows is the aluminum frame that gives a special appeal adding more style and comfort to your home.
Features of Awning window
1) 45mm frame width for anwing system.
2) Fixed flyscreen for chain winder type and retractable screen for L handle type.
3) Optional key lock chain winder or key lock L shape handle.
4) Excellent ventilation control.
5) Provides superior weathproofing.
6) Quality anti-scratch protective wrapping is optionable for all our products.
7) Glazing bar between the double glazing or attaching the surface is optional.
8) Gracious and elegant, yet practical and durable
9) For the chain winder type, the Maximum window height is 1900mm, max width is 900mm.
10) For the L handle type, the Maximum window height is 1900mm, max width is 1000mm.
Packing information:
| Material: Plastic film, Foam, Carton, Wooden box | ||
| 20FT | Door(1.8mx2.2m) | Window(1.2mx1.2m) |
| 90pcs | 200pcs | |
| 40FT | 200pcs | 420pcs |
| 40HQ | 250pcs | 530pcs |
Any questions,pls feel free to contact us!Welcome to pay a visit for us!
Photos:
Australia standard Hardware
Glass options
Workshop&showroom
Packing&Shipping
1.Protective tape protects products around ;
2.Use corner protection to protect products coner;
3.Keep windows or doors fixed on Wood case;
4.Tie up windows or doors with wood block;
5.PE films to keep away from sea water;
6.Tie up whole wood case with Iron straps.
Our packages will ensure the windows and doors arrive at project jobsite in good conditions.
Our Services
One Stop Solution Services:
Different Country has different climatic characters, we provide professional solutions on Doors & windows Profiles surface treatments and glazing to meet its diversity, it concerns the longevity of windows or doors, and each function of energy absorbing & saving.
We also provide one stop solution service for your project, like the profiles Design, the wind resistance, water proof,Sound proof, energy rating testing, Installation..
In additional, we Provide one stopservice for showerscreen, balustrade, pool fencing, ect other building materilas to save your labour, money and time.
